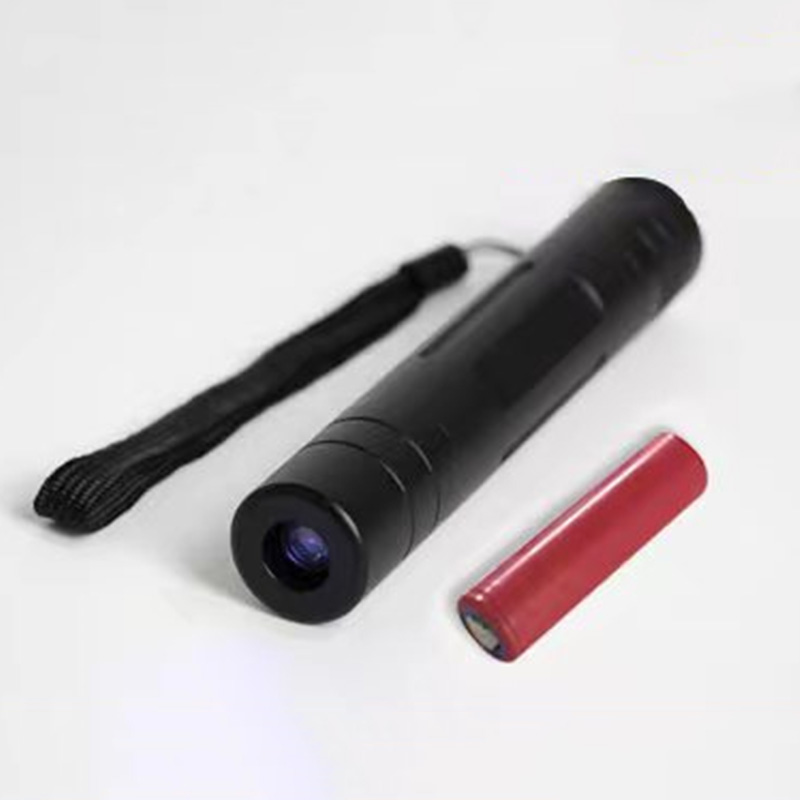

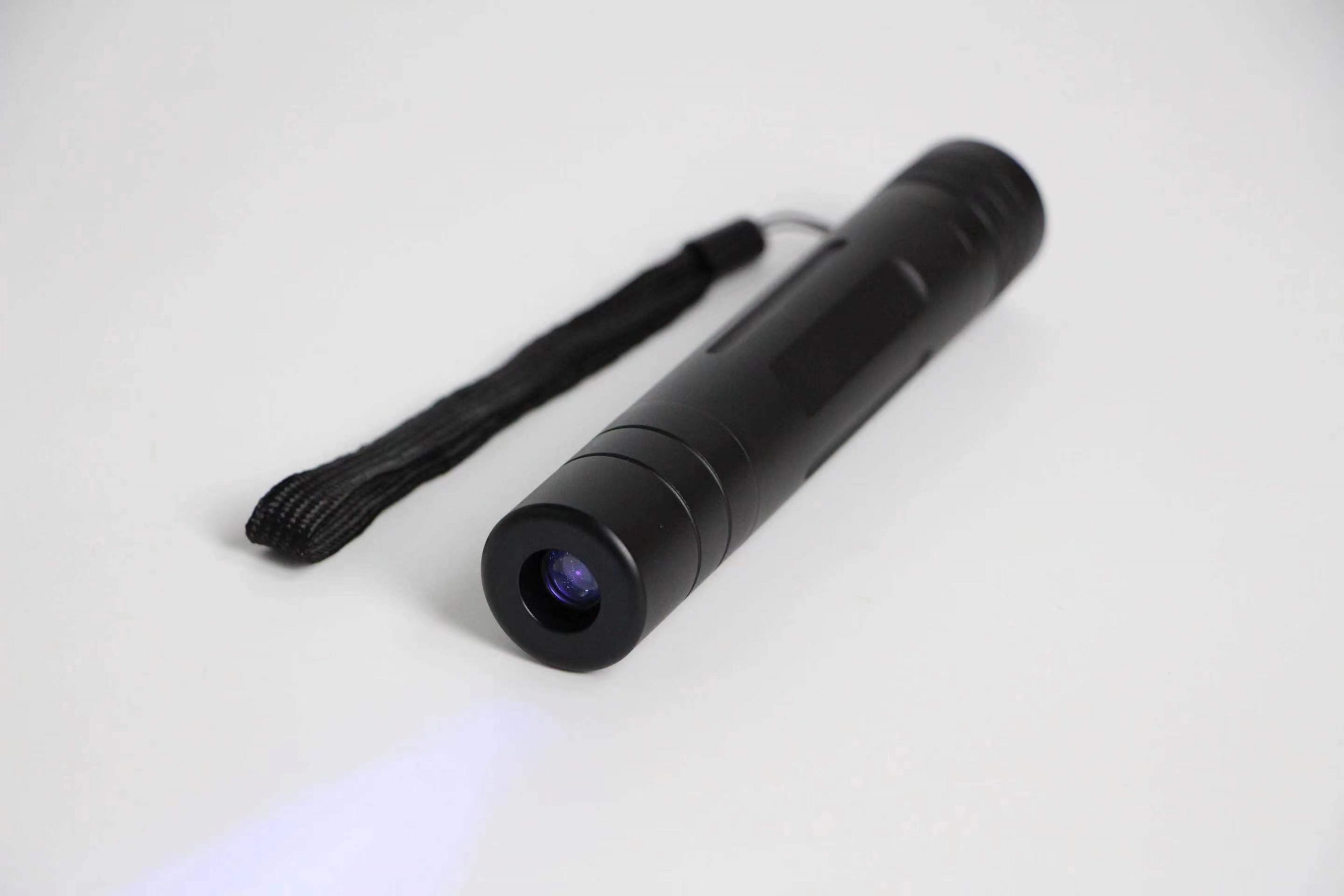

FLASHLIGHT FL-01
Handheld UV LED Spot Curing Lamp High power [MAX18w/cm^2]
| LED Beads | NICHIA SVC ( Korea SVC) |
| Wavelength | 365/385/395/405nm |
| Lifespan of LED | 20000H |
| Battery | Rechargeable 18650 high power Li battery |
| Size | 26(ø)x 130mm |
| UV intensity | MAX18w/cm^2 |
| Lens diameter | 2/3/4/5/6/8/10.. |
| Drive mode | High power mode |
| Battery working time | ≥3H |
| Weight | 160g without battery |
| Charger | Charge the battery full with 4.5hours |
| Usage | For curing UV glue,etc |
The product includes

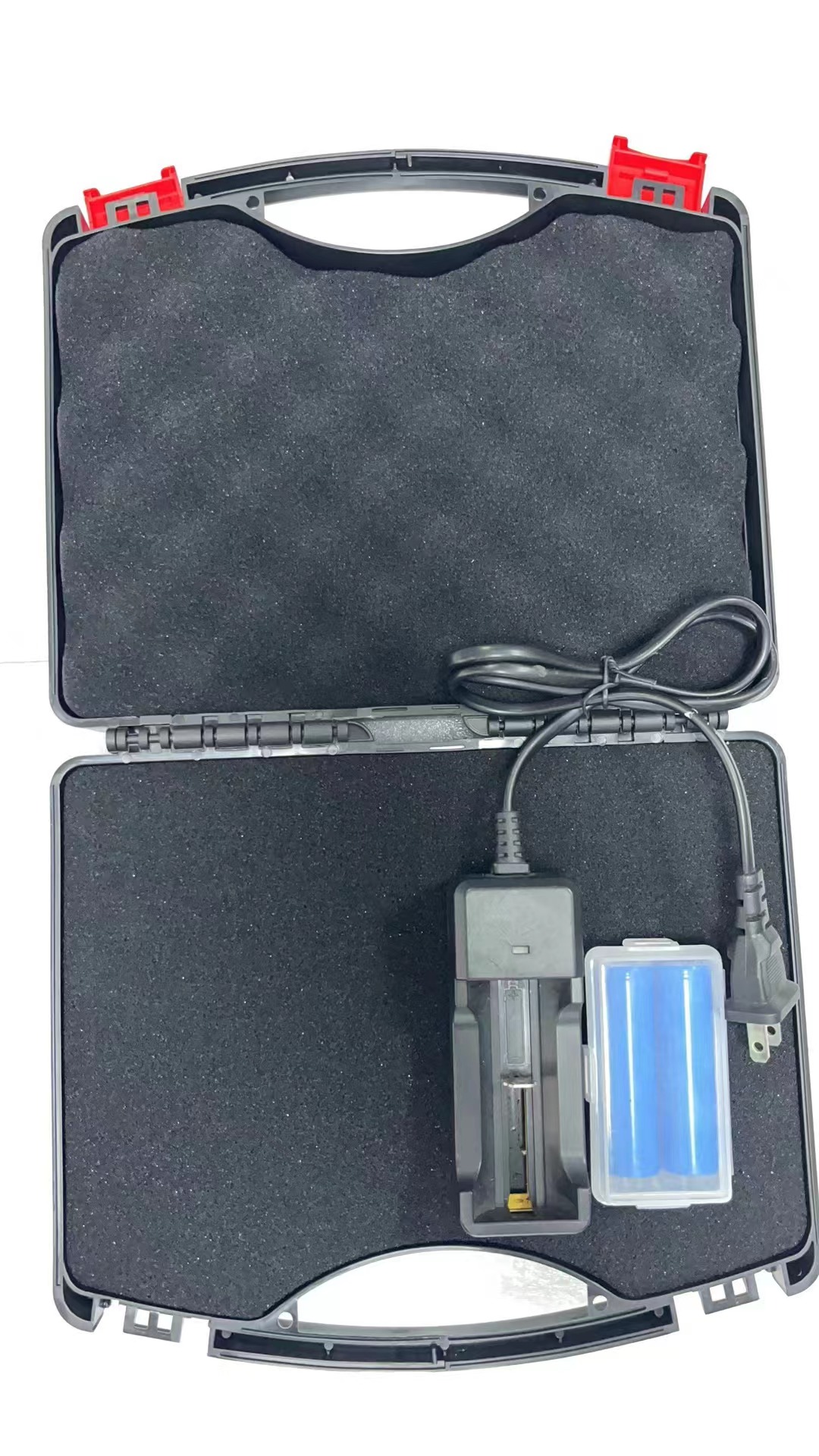

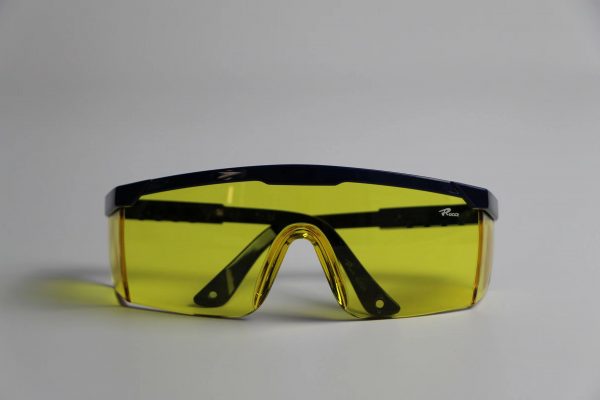

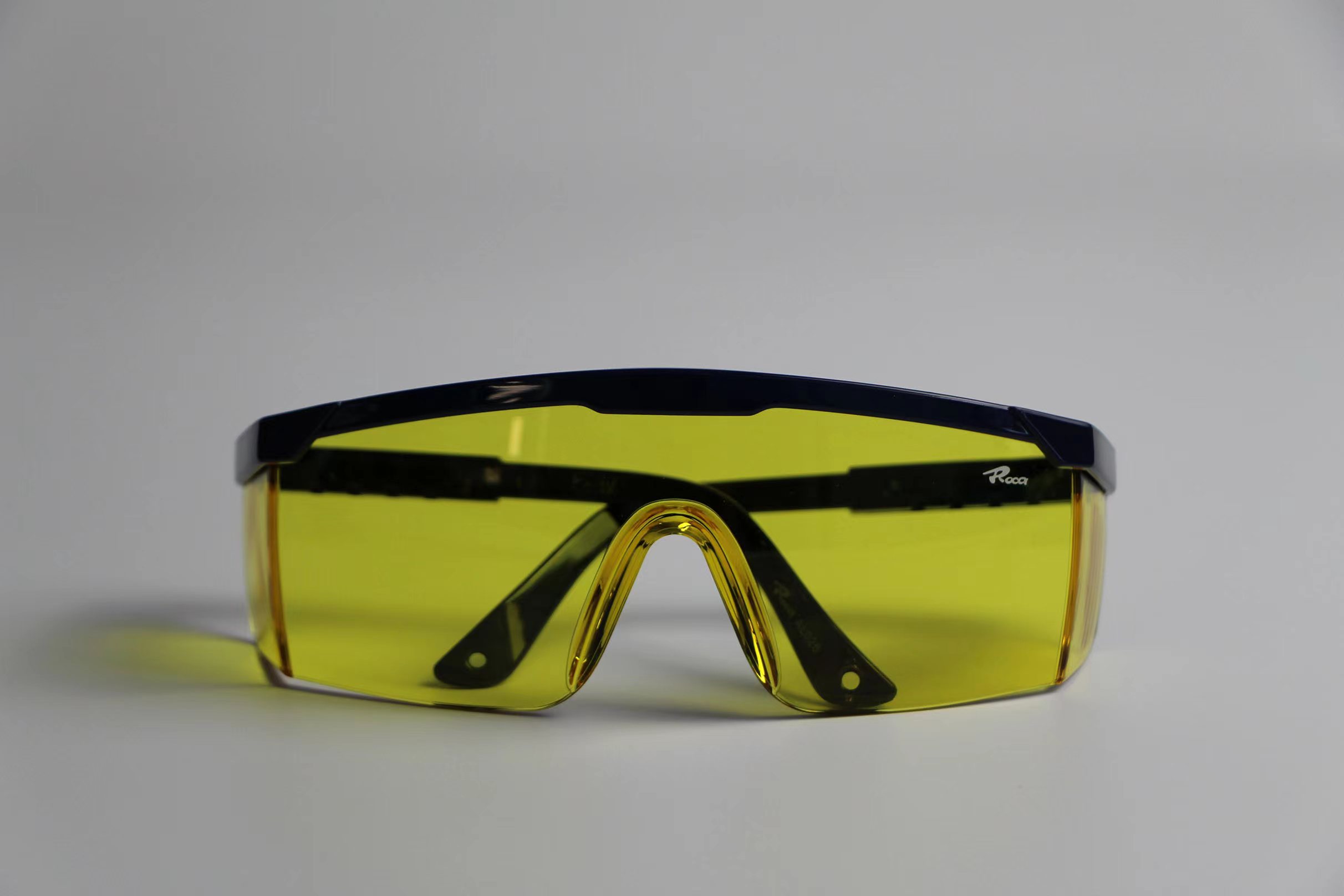

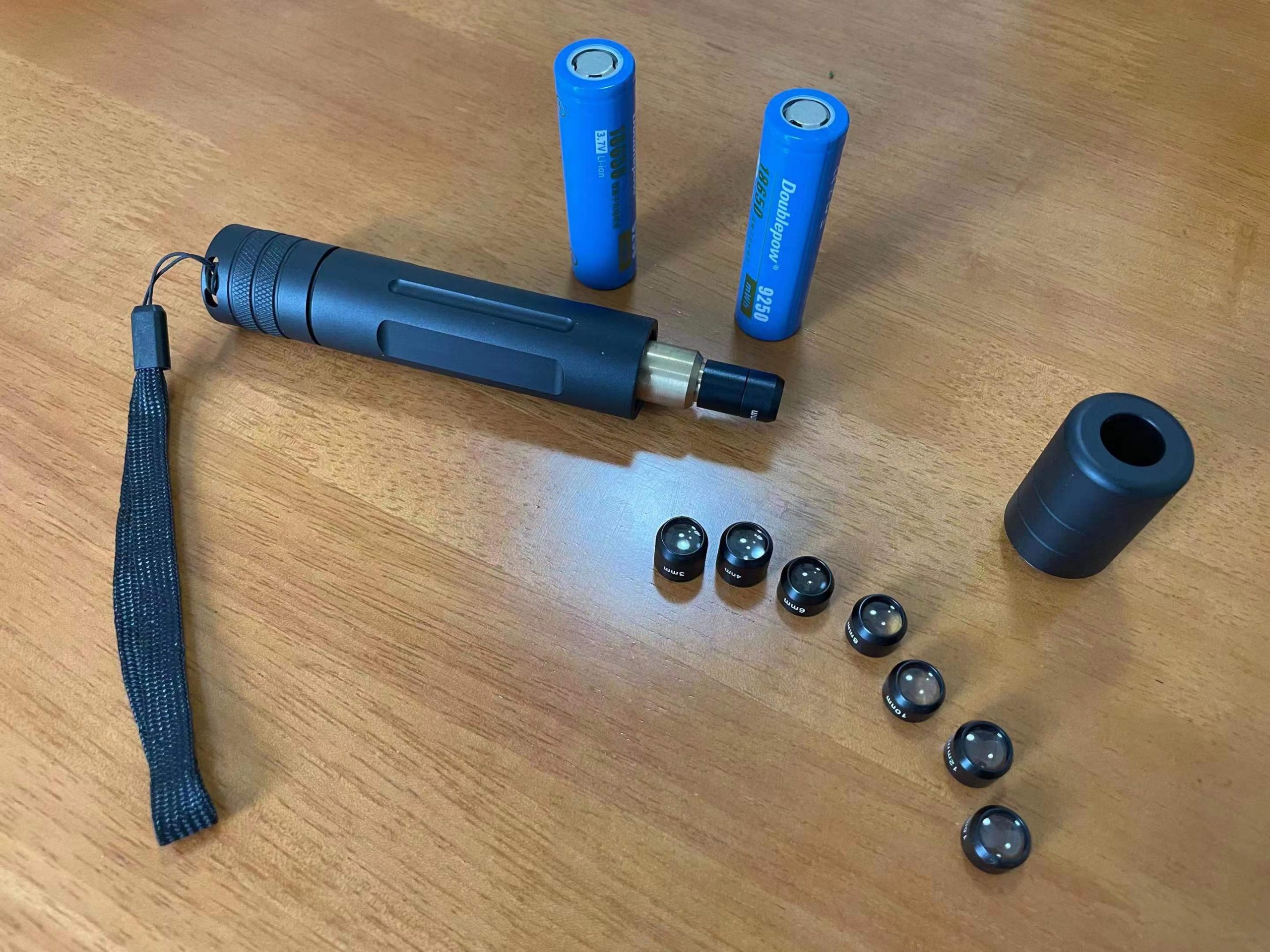

packaging box * 1 flashlight * 1 rechargeable batteries * 2 spot lens * 1 glasses * 1 rechargeable battery charger * 1
Lens diameter
model | spot size | Use Distance | Optical power( mw/cm2) |
LD02 | 2 | 8mm | 18000 |
LD03 | 3 | 10mm | 13000 |
LD04 | 4 | 14mm | 8500 |
LD05 | 5 | 16mm | 7280 |
LD06 | 6 | 17mm | 5980 |
LD08 | 8 | 27mm | 2340 |
LD10 | 10 | 25mm | 1820 |
LD12 | 12 | 25mm | 1040 |
LD15 | 15 | 38mm | 650 |
LD15S | 3*15 | 11mm | 1700 |
LD20S | 5*20 | 17mm | 860 |
LD006SV | 6 | 5mm | 4000 |
LD008SV | 8 | 14mm | 2000 |
LD010SV | 10 | 12mm | 1100 |
