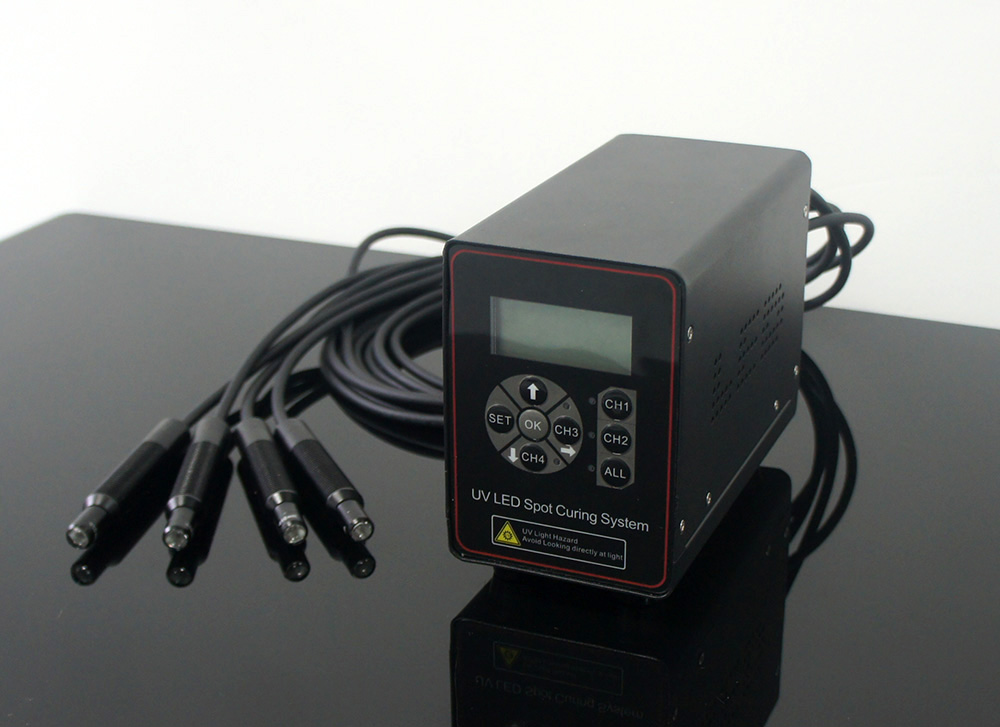

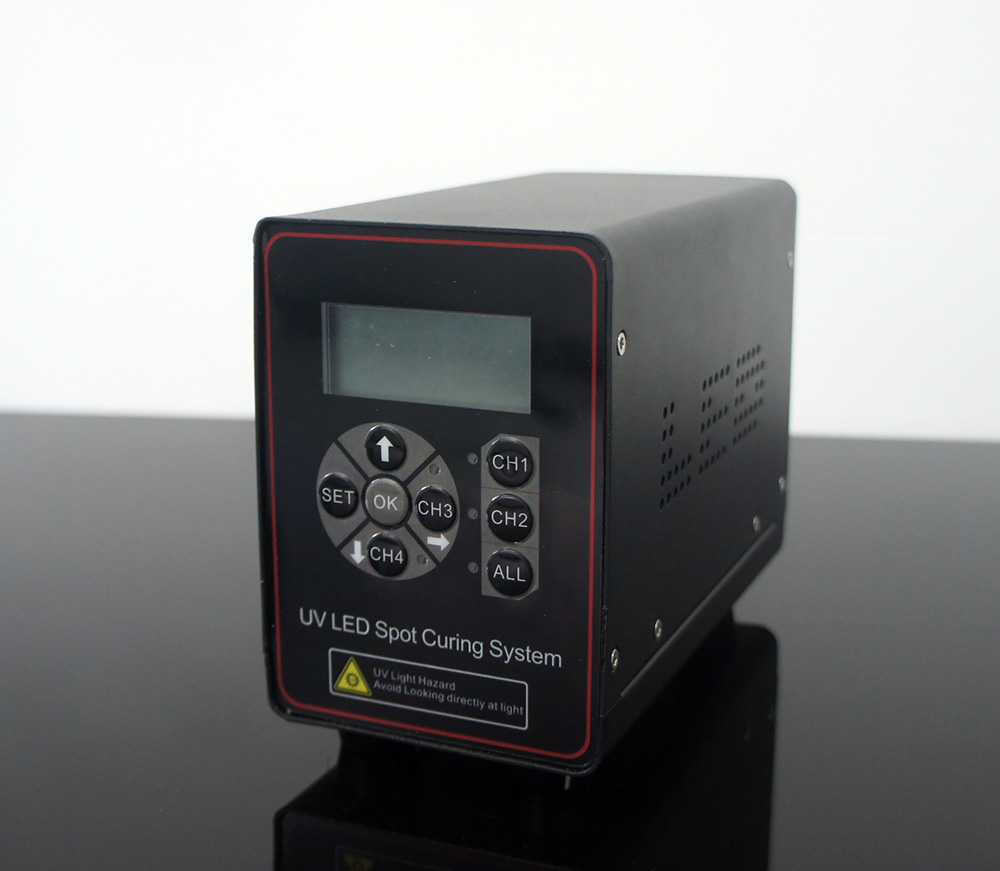

UV-LED Spot Curing System UV4S. Widely used in the curing of UV glue, UV ink, UV coating, etc., the main application industries include optics, microelectronics, communications, touch display, automotive electronics, medical, printing, furniture decoration, leather plastics and other industries.

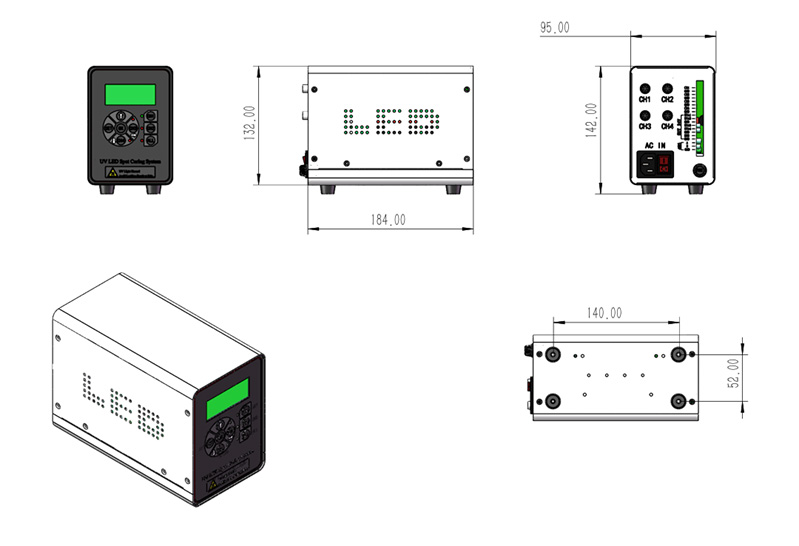

Controller size

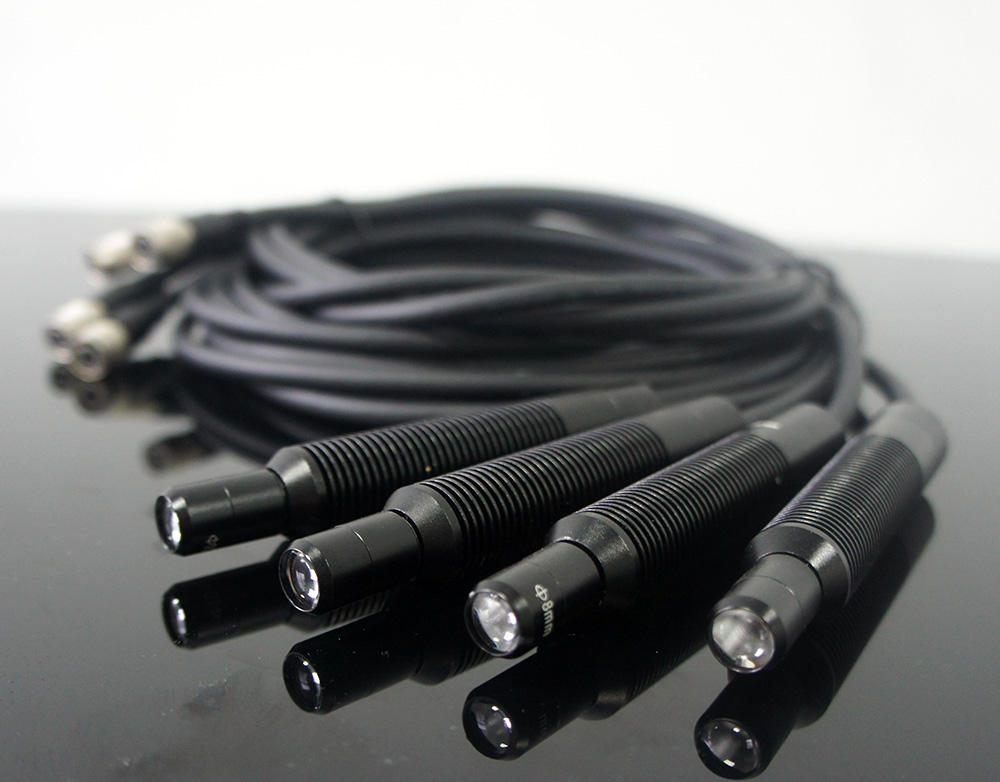

Irradiation head size
Light spot corresponding to the irradiation intensity
| Lens | Spot Size（mm） | distance（mm） | Optical Power（max）（mw/cm²） |
| JL02 | 2 | 8 | 18000 |
| JL04 | 4 | 14 | 8500 |
| JL06 | 6 | 16 | 5900 |
| JL08 | 8 | 17 | 2300 |
| JL10 | 10 | 27 | 1800 |
| model | UV4S |
| name | UV LED Spot Curing System |
| Power consumption | 20W (full load) (including curing light and controller) |
| Cooling method | Natural cooling |
| wavelength | 365nm |
| Maximum optical power | 18W/cm2（EIT Standards） |
| Light spot | 10（mm） |
| Recommended working distance | 27mm |
| Illuminator size | See irradiator dimensions on previous page |
| weight | About 0.2kg |
| Light stand material | Aluminum Alloy |
| Input | 220V/110V |
| Optical power adjustment range | 1-100%（Adjustment accuracy:1%） |
| Controller weight | About 1kg |
| LED connection cable | 2m（±0.2） |
| Power cord | 1.8m（±0.2） |
| Input control method | Countdown (0.1s-999m)/constantly on (short-circuit signal from foot switch or PLC) |
| Output signal | Light source status signal (0/24V off/on status)
Error alarm, including overheating, open circuit (0/24V error alarm) |
| open | Ready to use |
| Communication interface | RS485 |

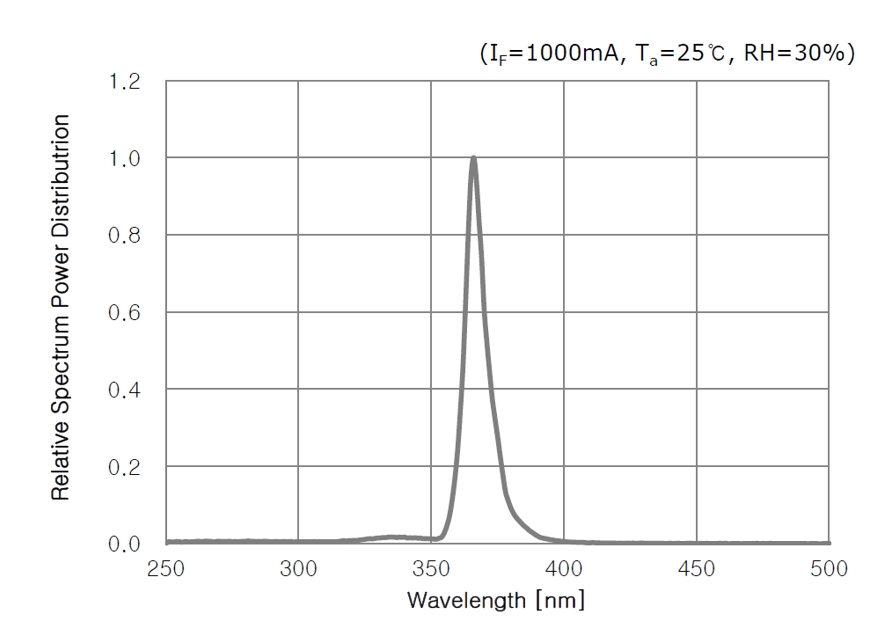

Spectral distribution – 365nm
UV LED curing light source features
Stable and precise drive, equal batch LED, uniform and stable lighting;
LED life is super long, and correct use can be free of consumables for life
Save electricity bills, low power consumption of the whole machine, and control measures can be taken to put the machine in standby mode when not working.
The light source is pure UV light, no IR, no infrared thermal effect; the light source itself has a very low operating temperature and very little thermal radiation.
No ozone is generated, and no external exhaust duct is required.
Easy to operate, ready to use, no need to wait.
Small and flexible, saving space.
Selected parts, superior and balanced performance (such as UV-resistant glue, UV-resistant wire).
