Specifications :
| 1
. |
Light source | UV LED |
| 2. | Wavelength | 365±5nm |
| 3. | Optical power | 1000mw/cm² |
| 4. | Spot area | ¢10mm @ 20mm |
| 5. | Power percentage | 0-100% |
| 6. | Time setting | 1s-999s |

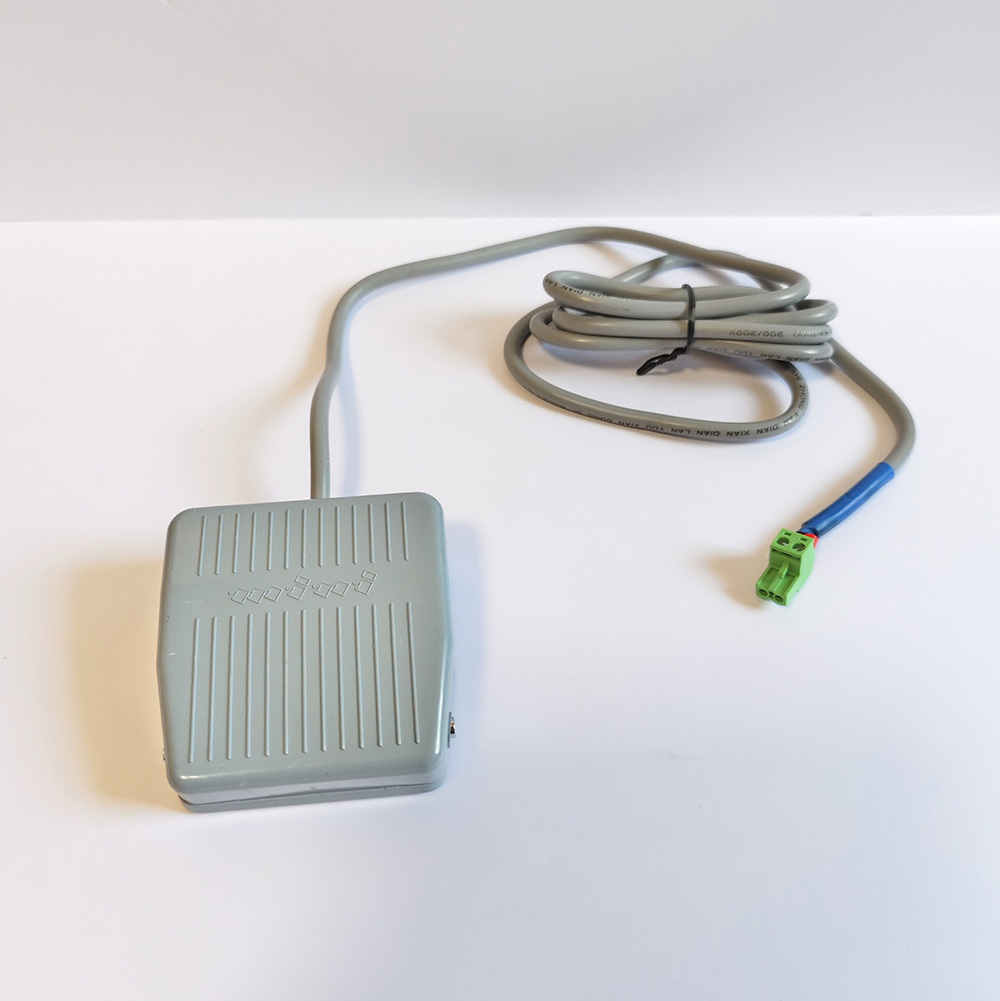

| 7. | Switch control mode | controller switch, Foot switch |
| 8. | Maximum power consumption | 5W |
| 9. | Controller power input | DC 12V 2A |
| 10. | Power adapter input | AC110-220V |

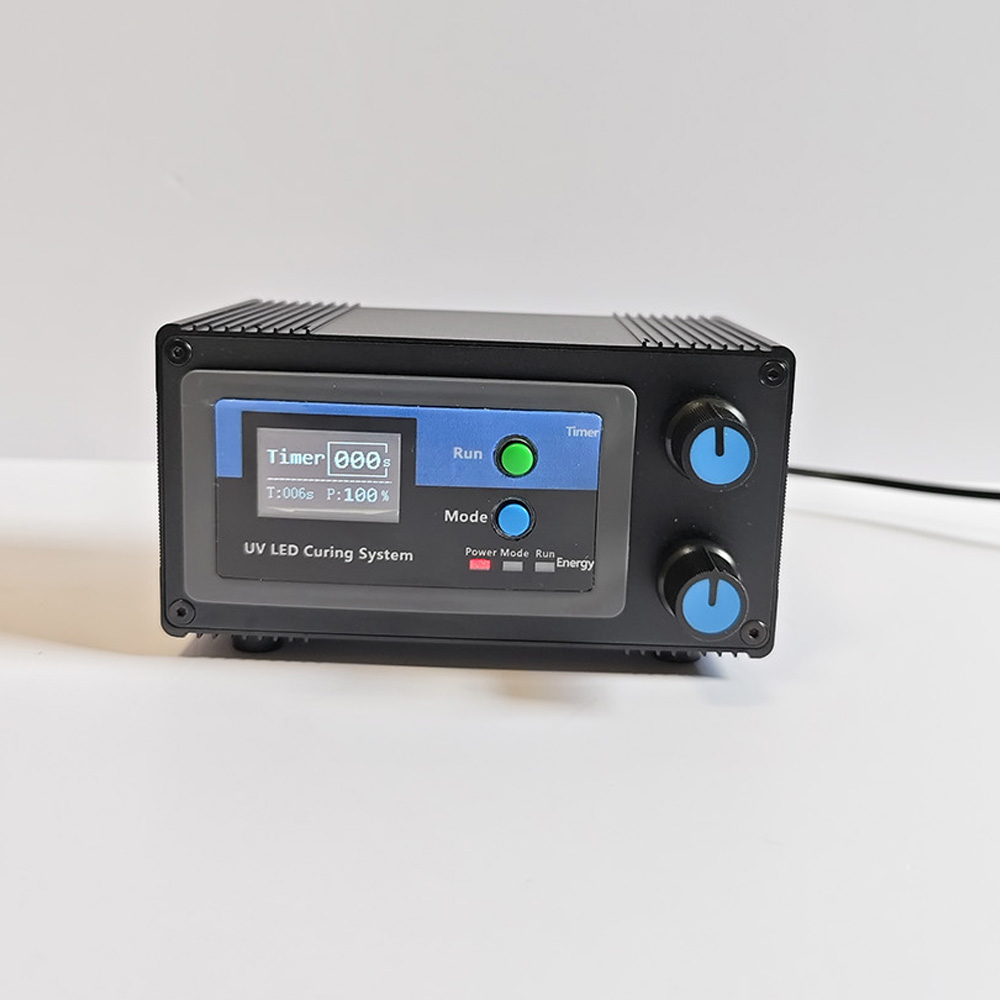

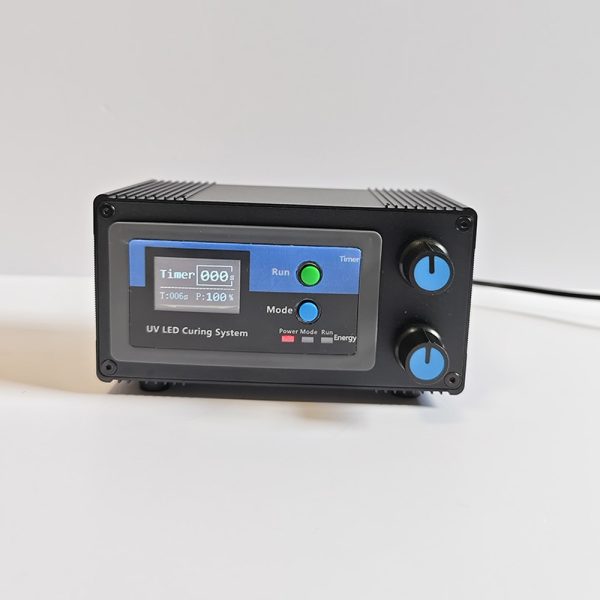

Run: Click the Run button to start the UV LED irradiation head, and the Run LED indicator lights up. Click the Close button again, and the Run LED indicator turns off.
Mode: Click the Mode button to enter the countdown mode, the Mode LED indicator lights up, and the task will be executed according to the set countdown. Click the Run button or use the foot switch to turn on the UV LED irradiation head. Wait for the countdown to end and the UV LED irradiation head will turn off, and the Mode LED indicator will go out. You can interrupt the shutdown the irradiation head by clicking the Run button or the foot switch again..
Time knob：Rotate the Time knob to the right, and the Timer stopwatch on the screen will increase by the number of grids you rotate. Rotate the Time knob to the left, and the Timer stopwatch on the screen will decrease by the number of grids you rotate. Press the Time knob to the middle to confirm the new countdown time. You will hear a buzzer and the countdown timer behind the “T” in the lower corner of the screen will change to the time you set.
Power knob：Turn the Power knob to the right, and the percentage displayed after the “P” in the lower right corner of the screen will increase according to the number of grids you rotate. Turn the Power knob to the left, and the percentage displayed after the “P” in the lower right corner of the screen will decrease according to the number of grids you rotate. The irradiation energy of the UV LED irradiation head will also change in brightness due to your adjustment.
